Technical Troubleshooting Guide for HPLC and UHPLC Backpressure Spikes

Executive Overview

A sudden increase in HPLC backpressure is one of the most common “stop-the-sequence” failures in liquid chromatography. In routine HPLC and UHPLC workflows, a frequent root cause is a partially or fully blocked in-line filter (also called a system filter, pre-column filter, or column protection filter). These filters are designed to trap particulates before they reach the guard column or analytical column. When the frit loads with debris or precipitated salts, the restriction can appear abruptly—sometimes within seconds—especially during gradient composition changes, after buffer-to-organic transitions, or when a sequence starts after the system has been idle.

This guide provides a stepwise method to:

• Identify whether the restriction is truly the in-line filter (vs. guard or column frit)

• Restore flow and pressure stability safely

• Prevent repeated clogs through solvent/sample hygiene, buffer compatibility, and maintenance controls

Key Terms (Quick Definitions)

• Backpressure: The pressure required to push mobile phase through the LC flow path (tubing → injector → column → detector). It rises with flow rate, solvent viscosity, smaller particle columns, longer tubing, and restrictions.

• In-line filter / System filter: A low-volume assembly containing a porous frit placed upstream of the column to trap particles.

• Frit: A porous disc (stainless steel, titanium, polymer, etc.) with a defined pore size (commonly 0.2–2 µm) that retains particles.

• ΔP (Delta-pressure): Pressure drop across a component. A rising ΔP across the in-line filter indicates progressive clogging.

• Restriction: Any partial blockage that increases hydraulic resistance (filter frit, column inlet frit, check valve screen, needle seat, etc.).

• Precipitation: Formation of insoluble material (often salts/buffers or sample components) as solvent composition changes—common during high-organic gradients with poorly soluble buffers.

Typical Symptoms of a Blocked In-Line Filter

Blocked in-line filters often present with a consistent pressure signature:

• Sudden pressure rise at constant flow, often during one injection or a gradient step

• Pressure noise/oscillation (partial clog behaving intermittently)

• High pressure persists even with the analytical column removed if the in-line filter is still in the circuit

• Unexpectedly high pressure at low flow (e.g., 0.1–0.2 mL/min), suggesting a fixed restriction rather than a column-only effect

• Overpressure faults that recur at similar method time points (often when organic content increases)

• Pressure returns to normal immediately after bypassing the in-line filter

Important: A blocked in-line filter can look identical to a blocked guard column or column inlet frit. The only reliable approach is component isolation (bypass one element at a time).

Where Blockages Commonly Occur (Restriction Map)

A “pressure spike” may originate from several locations. Common restriction points include:

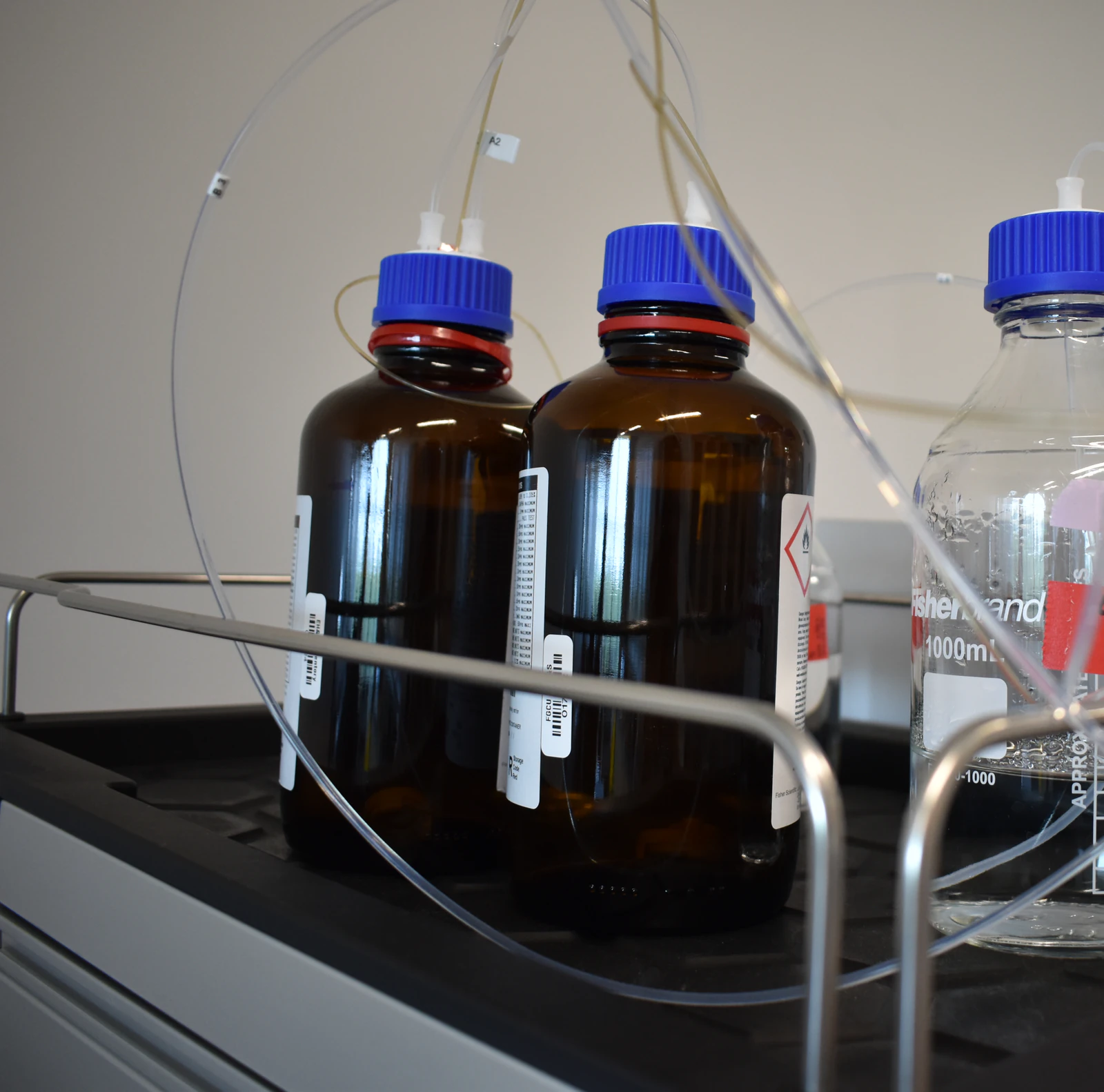

• Solvent inlet frits (reservoir pickup filters)

• Pump check valves (often contain micro-screens)

• Mixer/damper internal screens

• Autosampler needle, needle seat, or metering path

• In-line filter (between injector and column)

• Guard column

• Analytical column inlet frit (often blamed incorrectly when the in-line filter is the true restriction)

Practical note: If pressure remains high with the column removed, the restriction is upstream of the column (system side).

Root Causes of In-Line Filter Clogging

1) Particulate Ingress (Most Common)

• Unfiltered mobile phases or samples

• Inadequate filtration pore size

• Environmental dust introduced during solvent preparation or bottle refills

2) Buffer/Salt Precipitation During High-Organic Gradients

• Non-volatile buffers (e.g., phosphate or high-salt systems) can become poorly soluble in high acetonitrile segments

• Precipitation can occur in the filter frit first because it is the first high-surface-area barrier downstream

3) Wear Debris from Hardware

• Pump seals, piston seals, and check valves shedding fine particles

• Injector rotor seals or stator wear generating polymeric debris

4) Sample Matrix Deposition

• Proteins, polymers, excipients, lipids, or precipitating analytes that deposit on the frit surface

• “Invisible” particulate load from partially dissolved sample components

5) Microbial Growth in Aqueous Lines

• Biofilm fragments detach and accumulate rapidly at frits and screens

• More likely when aqueous mobile phases sit warm for extended periods

6) Material Compatibility / Corrosion Debris

• Inappropriate metallurgy under high pH, halides, or aggressive conditions can generate particulates (corrosion products)

7) Temperature-Driven Crystallization

• Reduced solubility in cooler environments (cold-room operation) promotes precipitation and clogging

Benchmarks and What “Normal” Looks Like

These numbers vary by instrument tubing volume/ID and plumbing design, so trend your own baseline.

• System pressure with column removed (50:50 water:ACN, 1.0 mL/min, 25 °C): often < 10–40 bar

• Pressure contribution of a clean in-line filter: usually < 2–10 bar at 1.0 mL/min

• UHPLC systems may show higher baseline system pressure due to narrow tubing—judge by relative change, not absolute value

• Viscosity order (pressure tendency at constant geometry/flow):
  water > methanol > acetonitrile

A sudden increase of tens to hundreds of bar points to a significant restriction, not a normal viscosity effect.

Rapid 5-Minute Triage (Fast Localization)

Goal: Determine whether the restriction is upstream or downstream of the column—and whether the in-line filter is responsible.

1. Set isocratic 50:50 water:ACN at 25 °C

2. Set flow to 0.1 mL/min

3. Stop flow, depressurize, and remove the column

4. Install a zero-dead-volume (ZDV) union in place of the column

5. Restart flow and ramp from 0.1 → 1.0 mL/min
   If pressure is normal: restriction is likely in the column/guard
   If pressure is still high: restriction is upstream (system side)

6. Bypass the in-line filter with a ZDV union
   If pressure drops markedly → in-line filter is blocked
   If not → investigate needle seat, autosampler path, pump check valves, inlet frits

Stepwise Diagnostic Workflow (Instrument-Safe)

Step 1 — Stabilize and Protect the Column

• Stop flow and allow pressure to decay fully

• Remove the analytical column to avoid forcing debris into the inlet frit

• Purge/prime solvent lines to waste at low flow to eliminate air/cavitation

Step 2 — Localize the Restriction by Isolation

Work upstream-to-downstream:

• Pump-to-waste (if system supports): high/noisy pressure suggests pump check valves/seals

• Through autosampler to waste: high pressure implicates needle/seat or sampler restriction

• Up to the in-line filter: note pressure

• Bypass/replace in-line filter: compare immediately

Step 3 — Confirm Likely Cause (Visual + Method Context)

Inspect removed filter/frit:

• White/opaque deposits often suggest salts/buffer crystallization

• Brown/black deposits often indicate sample matrix or polymeric residues

• Rust-colored debris suggests corrosion or metallic shedding
  Correlate with method behavior:

• Spikes during high-organic segments → precipitation risk is high

• Spikes after long idle periods → microbial or crystallization risk increases

Step 4 — Remediate (Preferred vs. Emergency)

Preferred action: replace the frit/filter assembly (best reproducibility and lowest risk)

If cleaning is necessary (short-term recovery only):

• Backflush with a syringe using a solvent appropriate for the suspected residue:
  salts → water first
  hydrophobic residues → MeOH or IPA
  mixed residues → water → MeOH/IPA sequence

• Optional brief ultrasonication (5–10 min) in compatible solvent

• Rinse thoroughly and verify low stable pressure before returning to analytical work

Step 5 — Verify System Integrity After Fix

• Install a new/clean filter

• Run 50:50 water:ACN at method flow and record pressure (new baseline)

• Reinstall column and confirm column ΔP matches historical behavior

• Run a short gradient to verify no recurrence at the critical composition/time point

Corrective Actions by Scenario

A) Pressure Spike During High-Organic Gradient Segment

• Replace in-line filter and inspect for salt deposits

• Reduce precipitation risk:
  lower buffer concentration
  verify solubility across the full gradient
  consider more organic-tolerant buffer systems when applicable

• Add a post-run flush to re-dissolve residues before shutdown

B) Repeated Clogging Over Short Time

• Replace solvent inlet frits and evaluate pump seal/check valve wear

• Filter mobile phases and samples consistently (see best practices below)

• Add a guard column (still keep the in-line filter—guard columns do not prevent all upstream debris)

C) Microbial Fouling

• Replace aqueous reservoirs and sanitize lines using a compatible alcohol/water cleaning sequence

• Store aqueous lines with a small organic fraction when appropriate and permitted by your method constraints

• Avoid long-term stagnant buffered aqueous phases

Best Practices for In-Line Filters (Design and Use)

Placement and Volume

• Place immediately upstream of the guard/column for maximum protection

• Use low internal volume designs to minimize extra-column dispersion (especially critical for UHPLC)

Pore Size Selection

• Typical: 0.5 µm (HPLC), 0.2 µm (UHPLC)

• Salt-heavy workflows may require balancing clog frequency vs. protection efficiency

• Trend system pressure to decide replacement intervals

Materials

• 316L stainless steel: general use

• PEEK/titanium: bio-inert or aggressive chemistry workflows

• Always verify compatibility with solvents, buffers, and pH range

Assembly and Torque

• Avoid overtightening (can deform frits or introduce dead volume)

• Ensure true ZDV connections to prevent mixing pockets that trap debris

Replacement Strategy

• Replace proactively when baseline system pressure rises by >10–20 bar under a fixed condition

• For dirty matrices, replacement by injection count is often more reliable than waiting for failure

Preventive Controls That Reduce Filter Clogs

Mobile Phase Controls

• Filter mobile phases through 0.2 µm membranes (especially for UHPLC)

• Prepare buffered phases fresh when practical

• Confirm buffer solubility across the entire gradient range

• Degas to minimize bubble-driven flow instability (degassing does not remove particles)

Sample Controls

• Centrifuge and filter samples (0.2–0.45 µm) where compatible

• Avoid injecting visible haze or precipitate

• Address solvent mismatch that causes on-instrument precipitation

Maintenance Controls

• Replace pump seals and check valves on schedule

• Inspect injector rotor seals and needle seats for wear debris

• Include end-of-sequence wash steps that remove deposits and prevent crystallization during idle periods

• Avoid storing the system in buffered aqueous solutions unless specifically recommended for your configuration

Quantitative Checks Worth Logging (High-Value Trending)

• Pressure vs flow linearity at fixed solvent and temperature
  (restriction often increases slope and offset)

• ΔP across in-line filter before/after replacement at a standard condition

• Pressure trace at key gradient compositions (e.g., 10%, 50%, 90% organic) to detect precipitation onset

• Baseline system pressure (no column) recorded monthly as a health metric

Safety Notes

• Fully relieve pressure before loosening fittings

• Use appropriate PPE and manage waste solvents per lab policy

• Confirm material compatibility before sanitization or aggressive cleaning

Example Diagnostic Commands (Operational Template)

• Prime solvent lines 3–5 min to waste

• Set 50:50 water:ACN at 0.2 mL/min; observe pressure 2 min

• Remove column, install ZDV union; repeat

• Bypass in-line filter with ZDV union; repeat

• Install new in-line filter; verify stable pressure at 1.0 mL/min

Brief Summary

Blocked in-line filters are a frequent cause of abrupt HPLC pressure spikes, particularly in gradients that promote salt precipitation or when particulate load increases from samples, mobile phases, microbial debris, or hardware wear. The most reliable diagnosis is stepwise isolation: remove the column, then bypass the in-line filter and compare pressure under a standard solvent and flow. The most reproducible corrective action is filter replacement, followed by restoration of baseline pressure and verification under a short gradient. Long-term prevention depends on filtration discipline, buffer/gradient compatibility, routine maintenance of seals/check valves, and appropriate filter pore size and material selection.
