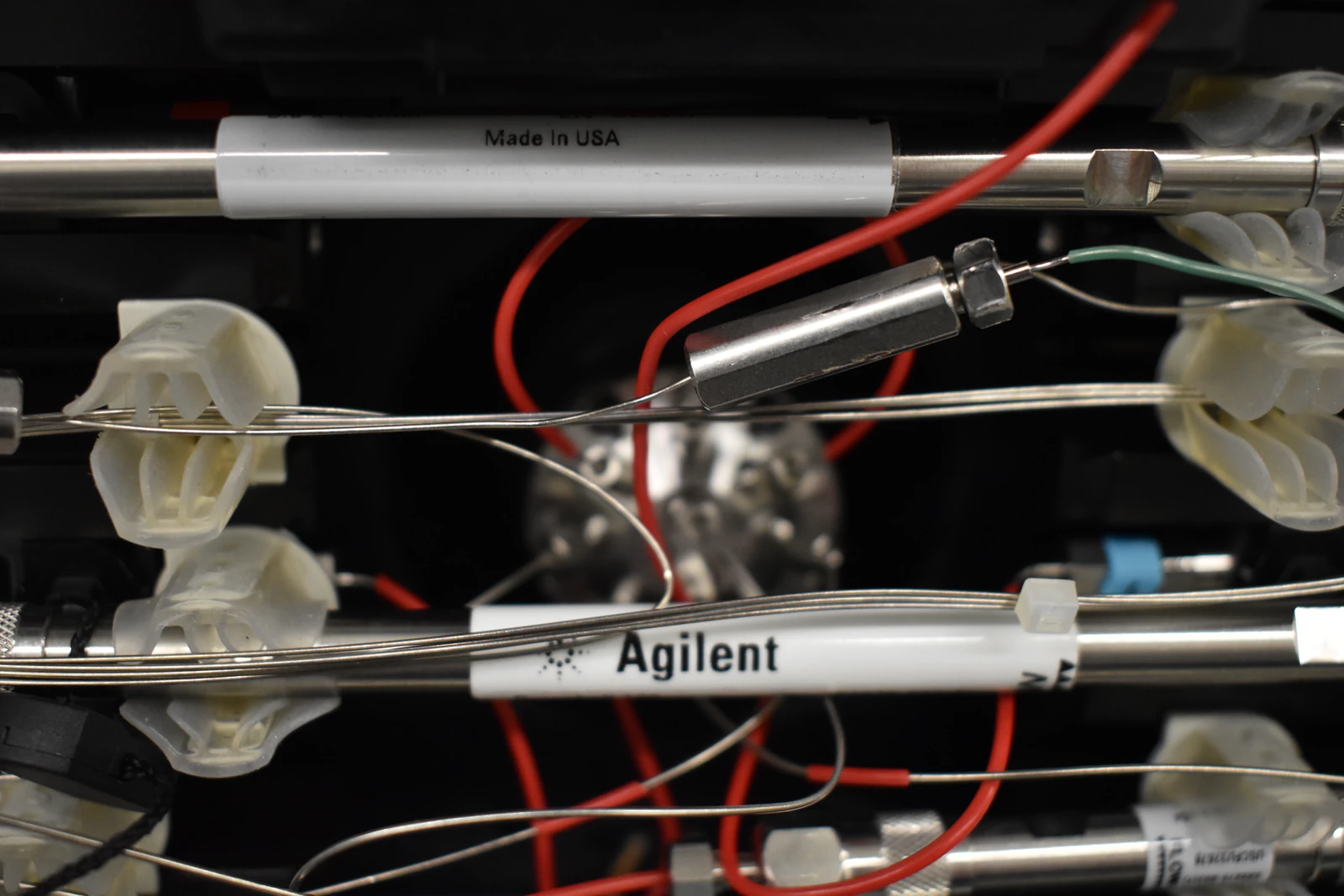

HPLC Column Cleaning Versus Replacement Decision Criteria
Fix HPLC Column Cleaning Versus Replacement Decision Criteria: isolation steps and corrective actions to reduce pressure spikes.

Executive Overview
High-performance liquid chromatography (HPLC) columns lose performance over time due to particulate fouling, chemical contamination, stationary phase degradation, or mechanical damage. The most expensive mistake is either (1) discarding a recoverable column, or (2) repeatedly cleaning a column that is already chemically or mechanically compromised. An evidence-based decision to clean versus replace requires:
Quantitative diagnostics (pressure, plates, tailing/asymmetry, retention, resolution, dead time)
A solvent- and chemistry-compatible cleaning sequence
Clear post-clean acceptance criteria
A symptom-based troubleshooting logic that separates column issues from system/mobile-phase issues
This technical guide provides decision frameworks, test metrics, validated cleaning workflows for common HPLC modes (reversed-phase, HILIC, ion-exchange, size exclusion), and practical scripts you can implement immediately to reduce downtime and protect method integrity.
1. Why HPLC Columns Fail: The Four Root Causes
1.1 Particulate Fouling
Particles plug the inlet frit and upper bed, causing:
Increased backpressure (often progressive)
Broader peaks (loss of efficiency)
Sometimes improved retention repeatability but poorer peak shapes
Common sources:
Poor sample filtration
Precipitated buffers
Crystallized salts
Particles released from vials/septa/lines
1.2 Chemical Contamination (Reversible or Semi-Reversible)
Strongly retained compounds accumulate on the stationary phase, causing:
Peak tailing and loss of symmetry
Memory effects (ghost peaks)
Slight retention shifts
Reduced plate count
Common sources:
Hydrophobic residues (lipids, polymers, surfactants)
Ion-pair reagents (persistent adsorption)
Protein and biomatrix components
Strong bases/acids binding to active sites
1.3 Stationary Phase Degradation (Often Irreversible)
Chemical damage changes selectivity and retention permanently, driven by:
Exposure to extreme pH outside column limits
Oxidants or aggressive reagents
Prolonged high temperature outside limits
Hydrolysis of bonded phase
Dissolution or structural change of silica support
1.4 Mechanical Damage (Usually Irreversible)
Physical disruption causes:
Bed collapse or void formation
Channeling
Irrecoverable frit blockage
Typical signs:
Systematic fronting
Early-peak shoulders
Distorted unretained marker
Unstable retention and resolution
2. Clean or Replace? The Decision Framework You Can Defend
2.1 Clean the Column When…
Cleaning is justified when evidence points to reversible fouling:
Backpressure is elevated but normalizes after backflushing (if permitted) or after solvent changes, consistent with frit/superficial bed plugging
Retention and selectivity are largely preserved, but peak shapes degrade (mild tailing or broadening)
Performance metrics show moderate loss (for example, plate count reduced by about 20–40%) and show improvement after initial washing
The issue follows a known contamination event (heavy matrix, ion-pair reagent usage, protein carryover, strong hydrophobes)
2.2 Replace the Column When…
Replacement is justified when evidence points to irreversible damage:
Severe performance loss persists after comprehensive cleaning (for example, plate count reduction greater than about 50%, tailing/asymmetry greater than about 2–3, or critical-pair resolution remains unacceptable)
Mechanical damage suspected: void/bed collapse, channeling, irrecoverable frit blockage
Selectivity has permanently shifted, indicating chemical degradation or bonded phase loss
Pressure remains high after backflush and viscosity normalization, indicating internal blockage or packing damage
Chronic reproducibility failure remains after conditioning (retention drift not corrected), consistent with stationary phase depletion or irreversible active sites
Practical rule:
If acceptance criteria are not met after two full, chemistry-compatible cleaning cycles (including backflush if allowed), replacement is typically the correct operational choice.
3. Baseline Diagnostics Before You Clean Anything
Before deciding, establish a standardized reference. The goal is to avoid confusing a system issue with a column issue and to produce objective evidence that cleaning worked (or did not work).
3.1 Establish a Reference Test Mix Under Standard Conditions
Record:
Plate count (N)
Tailing factor (T) or asymmetry (As)
Retention time (tR)
Resolution (Rs) for a critical pair
Backpressure at method flow and temperature
Compare to:
Your historical data (preferred)
Vendor QC data sheet (if available)
A known-good column of the same type (if you have one)
3.2 Normalize Pressure to Solvent Viscosity
At the same flow rate, record pressure with:
Water
Methanol
Acetonitrile
A disproportionate pressure increase that cannot be explained by solvent viscosity indicates fouling or blockage.
3.3 Track Column Dead Time (t0) with an Unretained Marker
For RP methods, uracil is commonly used as an unretained marker.
Red flags:
Sudden changes in t0
Distorted marker peak
Major changes in apparent porosity or flow path
3.4 Injection-Solvent Stress Test
Inject a small plug of:
Mobile phase A
Sample diluent
If severe fronting appears only with strong diluent, the issue may be injection solvent mismatch rather than column damage.
4. Core Performance Metrics and How to Use Them
Use the same calculation approach consistently across time.
4.1 Plate Count (Efficiency)
Track relative change rather than absolute values when comparing across long periods.
Operational interpretation:
20–40% drop: often recoverable via cleaning
Greater than 50% drop: frequently irreversible or mechanical
4.2 Peak Symmetry (Asymmetry or Tailing Factor)
Indicators:
Rising tailing for bases on RP often suggests active sites or fouling
Fronting often suggests void, overload, or strong diluent effects
4.3 Resolution (Rs) of the Critical Pair
Resolution is often the most method-relevant metric.
If Rs fails and does not recover after cleaning and proper equilibration, replacement is likely.
4.4 Backpressure at Fixed Flow and Temperature
Track against a baseline using the same solvent composition and temperature.
Persistent high pressure after cleaning suggests internal blockage or damaged packing.
5. Safety and Compatibility Rules That Prevent Column Destruction
Verify solvent, pH, and temperature limits for your specific column chemistry and hardware
Remove salts and buffers with water before switching to high organic to avoid precipitation
Use solvent transition bridges for immiscible changes (example: water → IPA → hexane)
Confirm system compatibility (seals, tubing, mixer) with planned wash solvents
Do not exceed pressure limits during high-viscosity or high-IPA steps
6. General Cleaning Strategy That Works Across HPLC Modes
6.1 Sequence Logic
A universally safe cleaning concept:
Remove particulates (backflush if permitted)
Remove salts and hydrophilic residues (water flush)
Remove hydrophobes (high organic, stronger eluotropes)
Disrupt ionic interactions (pH shift or high ionic strength, if allowed)
Return to method starting conditions and re-equilibrate thoroughly
6.2 Column Volumes (CV)
A practical starting point is 10–20 column volumes per step.
Estimate column volume using dead time:
CV ≈ F × t0
where:
F = flow rate
t0 = dead time
This approximation is especially useful for setting consistent wash durations.
6.3 Backflushing (If Allowed)
Reverse flow carefully at reduced flow rate
Clear inlet frit and upper bed
Restore normal flow direction before analysis
If the manufacturer prohibits backflushing, do not backflush.
7. Mode-Specific Cleaning Protocols (Ready-to-Use Scripts)
7.1 Reversed-Phase (RP: C18, C8, Phenyl)
Typical sequence (adjust to limits):
10–20 CV water (remove salts/buffers)
10–20 CV 50:50 water:acetonitrile (or water:methanol)
10–20 CV 95–100% acetonitrile or methanol
Optional: 10–20 CV isopropanol (IPA) or 50:50 IPA:acetonitrile for strong hydrophobes
Return to starting mobile phase and re-equilibrate (at least 10 CV)
Ion-pair contamination:
High organic plus repeated water/organic cycles to reduce reagent memory
Protein/biomatrix residues:
Water flush, then high salt in water if compatible, then water, then high organic
Notes:
Avoid direct buffered aqueous → high organic switches (precipitation risk)
If selectivity shifts after aggressive cleaning, suspect bonded phase degradation
7.2 HILIC
Typical sequence:
10–20 CV high organic (example: 90% acetonitrile)
10–20 CV water
10–20 CV high organic again (restore partitioning environment)
Re-equilibrate to method
If ionic residues persist:
If compatible, include a moderate salt wash in water, followed by thorough water and high organic flushing.
7.3 Ion Exchange (IEX: Cation/Anion Exchange)
Typical sequence:
10–20 CV low ionic strength buffer or water
10–20 CV high ionic strength salt solution (displace strongly bound analytes)
10–20 CV water (remove salt)
Optional: controlled pH swings within allowed limits to regenerate charged sites
Re-equilibrate thoroughly with starting buffer
7.4 Size Exclusion (SEC/GPC)
Typical sequence:
10–20 CV working mobile phase to purge contaminants
If permitted, gradual solvent changes using miscible bridges to remove hydrophobes
Return to working mobile phase and equilibrate
Avoid:
High-viscosity solvents that exceed pressure limits
Conditions that collapse the gel or alter pore structure
8. Acceptance Criteria After Cleaning (Pass/Fail Rules)
After cleaning and full re-equilibration, you should see:
Backpressure within about 10–20% of historical baseline for the same solvent and flow
Plate count within about 80–90% of initial reference for the test analyte under identical conditions
Asymmetry/tailing back in method-acceptable range (for example, As ≤ 1.5–2 for key peaks)
Retention and selectivity stable over multiple injections after equilibration (drift within typical method variability)
Critical-pair resolution meets system suitability requirements
If these are not met after two full cleaning cycles, plan for replacement.
9. Symptom-Based Troubleshooting: What the Column Is Telling You
Symptom: Rapidly Rising Pressure During Runs
Likely causes:
Inlet frit plugging
Particulate-laden samples
Buffer precipitation
Diagnostics:
Pressure vs flow in neat solvents
Check filtration of samples/mobile phases
Corrective actions:
Backflush if allowed
Flush water then high organic
Replace guard and inline filters
Improve filtration and sample prep
Symptom: Peak Tailing Increases (Especially for Bases on RP)
Likely causes:
Active sites exposed
Strongly adsorbed contaminants
pH drift
Diagnostics:
Test mix including a basic probe
Verify mobile-phase pH
Corrective actions:
Apply compatible pH flush within column limits
Use salt wash where appropriate
If persistent, consider a more base-deactivated phase
Symptom: Systematic Fronting and Early-Peak Shoulders
Likely causes:
Void/bed collapse
Severe overload
Strong diluent mismatch
Diagnostics:
Unretained marker peak shape
Reduce injection volume or strong solvent fraction
Corrective actions:
If void is confirmed, replace the column
Mitigate with weaker diluent, smaller injection, and guard column
Symptom: Large Retention Shifts Without Selectivity Change
Likely causes:
Incomplete re-equilibration
Temperature variation
Partial dewetting in highly aqueous RP conditions
Diagnostics:
Track t0 and retention across repeated injections
Verify temperature control
Corrective actions:
Extend equilibration (10–20 CV)
Add a conditioning segment
Ensure adequate organic content to prevent dewetting where applicable
Symptom: Ghost Peaks and Memory Effects
Likely causes:
Adsorbed hydrophobes
Ion-pair reagent carryover
Diagnostics:
Blank injections
Washout behavior during strong wash
Corrective actions:
Aggressive organic/IPA washes
For ion-pair: repeated water/organic cycles
Consider dedicated column for ion-pair methods
Symptom: Baseline Noise or Drift
Likely causes:
Detector/mobile phase issue, not column
Diagnostics:
Bypass the column
Test fresh solvents
Corrective actions:
Degas and replace mobile phases
Service detector
Return to column only after confirming system stability
10. Example Cleaning Scripts (Quick Copy/Paste)
RP General Wash
10–20 CV water
10–20 CV 50:50 water:ACN
10–20 CV 95–100% ACN
Optional 10–20 CV IPA
Re-equilibrate to method (at least 10 CV)
HILIC General Wash
10–20 CV 90% ACN
10–20 CV water
10–20 CV 90% ACN
Re-equilibrate to method
IEX Regeneration (If Permitted)
10–20 CV low ionic strength buffer/water
10–20 CV high salt
10–20 CV water
Re-equilibrate to method buffer
11. Preventive Practices That Extend Column Lifetime
Use guard columns and inline filters; replace them regularly
Filter and degas mobile phases
Avoid mixing buffered aqueous with high organic without an intermediate water flush
Filter or centrifuge samples; minimize particulate and matrix load
Match injection solvent strength to the starting mobile phase
Add periodic strong wash steps at the end of sequences
Maintain stable temperature and log performance metrics over time
Avoid extreme pH or oxidants unless the column chemistry is designed for it
12. Cost and Operational Reality: When Replacement Is the Smart Choice
Cleaning consumes:
Analyst time
Instrument time
Solvents
Risk of inconsistent recovery
Replace when:
Recovery is temporary or incomplete
Selectivity changes persist
Mechanical damage is suspected
Regulated methods require stable, validated performance
Maintaining a validated backup column minimizes disruption and protects timelines.
Summary
Choosing between cleaning and replacing an HPLC column should be driven by measurable diagnostics and defined acceptance criteria. Clean when symptoms indicate reversible fouling and key metrics recover after structured washing; replace when mechanical damage, stationary phase degradation, or persistent performance loss remains after thorough remediation. A disciplined cleaning workflow, combined with preventive practices (filtration, guards, controlled solvent transitions, and periodic washes), delivers longer column life and higher method robustness.
