Diagnosing HPLC Flow Restrictions by Sequential Isolation

A Step-by-Step Troubleshooting Guide for Elevated Backpressure and Unstable Flow

Fast separations operated at higher-than-typical flow rates are increasingly common in modern analytical workflows. However, elevated flow amplifies even minor hydrodynamic restrictions within an HPLC system. While techniques such as MS or NMR confirm molecular identity, HPLC uniquely resolves mixture quality, yield, and side products, making stable and predictable flow essential for method reliability and data integrity.

Scope and Objectives

This guide presents a structured approach to diagnosing elevated pressure, pressure instability, or reduced flow in HPLC systems by sequentially isolating segments of the fluidic path. The objectives are to:

• Systematically locate flow restrictions within the pump, degasser, mixer, autosampler components (valves, needle seat, sample loop), inline filters, tubing, detector flow cell, guard column, or analytical column.

• Differentiate physical blockages from hydrodynamic, solvent-related, or mechanical causes.

• Provide corrective actions and preventive strategies, with emphasis on high-flow operation where small restrictions become critical.

Common Symptoms and Initial Hypotheses

Elevated, Smooth Backpressure That Scales With Flow

• Typically indicates a physical restriction such as a blocked frit, clogged inline filter, constricted tubing, or fouled column inlet.

• Pressure increases proportionally with flow under laminar conditions until the restriction becomes severe.

Pressure Fluctuations, Pulsation, or Flow Collapse

• Commonly associated with degassing inefficiency, pump inlet restrictions, or check-valve seating problems.

• Audible cavitation or irregular pressure traces are frequent indicators.

Abrupt Pressure Increase During Gradients or Solvent Switching

• Suggests buffer precipitation, viscosity mismatch, or solvent incompatibility occurring in the mixer, autosampler valve, or column frit.

Preparation and Safety Considerations

• Wear appropriate personal protective equipment and follow safe solvent-handling practices.

• Always relieve system pressure before disconnecting components.

• Use freshly prepared, filtered mobile phases and ensure proper degassing.

• When operating without a column, install a capillary restrictor to maintain moderate backpressure so pump check valves seat reliably.

• Document each configuration change and observation using a consistent test solvent system.

Required Tools and Reference Materials

• Zero-dead-volume unions and plugs

• Spare inline filters and guard cartridges

• Capillary restrictor (narrow inner-diameter tubing)

• Two mobile phases with distinctly different viscosities

• Gravimetric or volumetric flow measurement capability

• Knowledge of buffer solubility, pH effects, and solvent miscibility

Baseline System Characterization

Before isolating individual components, establish baseline system behavior:

• Operate isocratically using a fully miscible solvent system.

• Perform a flow-rate sweep across several flow settings appropriate for the instrument.

• Record pressure at each step and confirm a near-linear pressure–flow relationship, characteristic of unrestricted laminar flow.

• Repeat using a second solvent of different viscosity to evaluate solvent-dependent behavior.

Nonlinear pressure trends, abrupt offsets, or solvent-independent pressure elevation indicate localized restrictions.

Sequential Isolation Strategy

The guiding principle is to remove or bypass one component at a time and observe changes in pressure and flow. The component whose removal produces the largest pressure drop is the most likely restriction site.

Step 1: Verify Pump Health Using a Restrictor

• Disconnect the system downstream of the pump outlet.

• Install a restrictor to generate moderate backpressure.

• Evaluate pressure stability and flow linearity.

Indicators of pump-side issues include unstable pressure, pulsation, or difficulty generating pressure, often caused by inlet frit blockage, degasser leaks introducing bubbles, worn seals, or malfunctioning check valves. Stable pressure scaling indicates a healthy pump.

Step 2: Degasser and Mixer Assessment

• Connect pump → degasser → mixer → restrictor.

• Evaluate pressure stability under constant flow.

Instability at this stage often reflects bubble formation, degasser membrane issues, or solvent incompatibility. Testing with a pre-mixed isocratic mobile phase can help isolate mixing-related effects.

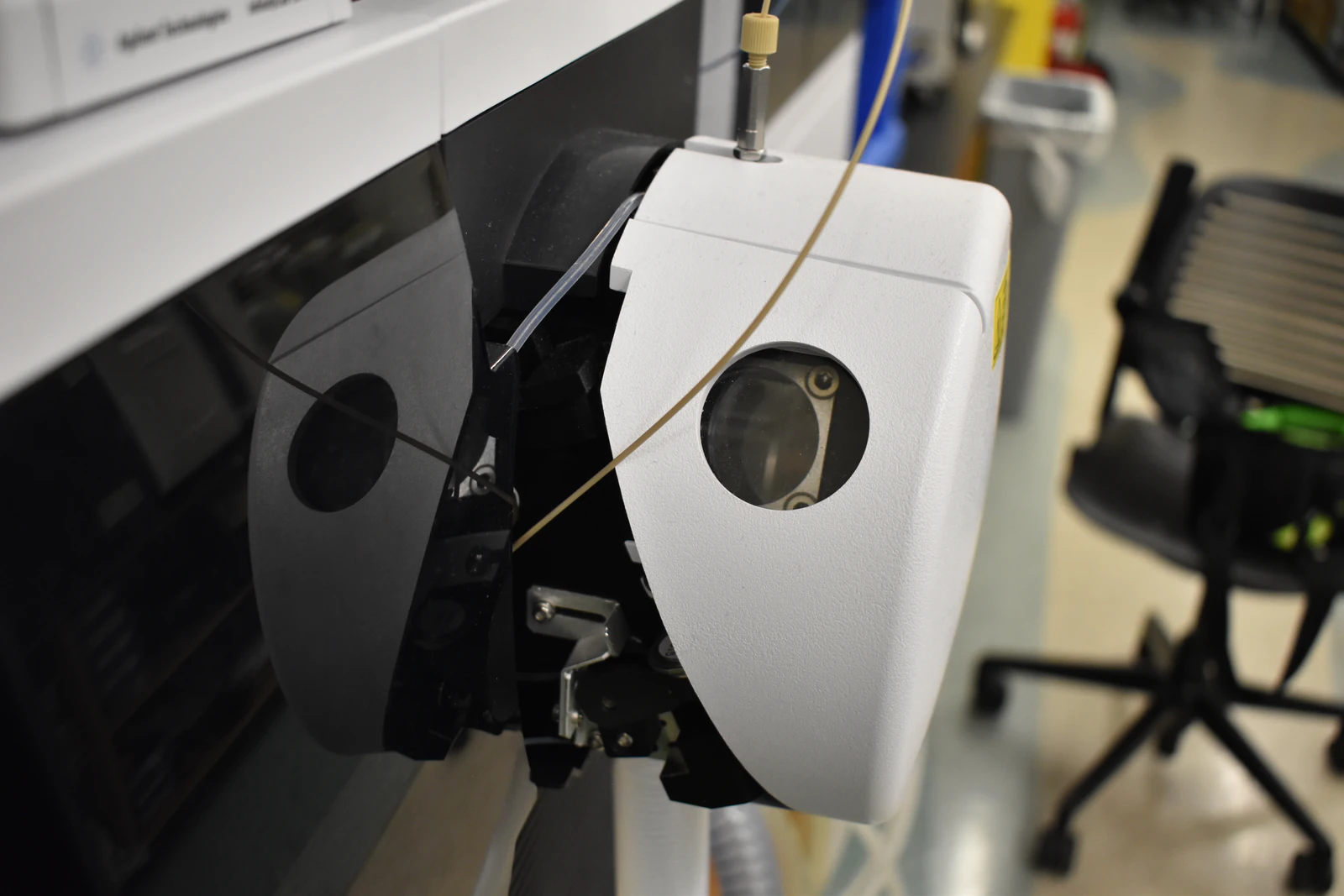

Step 3: Autosampler Valve and Needle Seat

• Route flow through the autosampler valve in both load and inject positions, terminating in a restrictor.

• Compare pressure behavior between positions.

Pressure increases or instability in the inject position typically indicate debris accumulation on the needle seat, rotor seal wear, or fouled sample loops. Cleaning or replacement is often required.

Step 4: Inline Filters and Precolumn Frits

• Reintroduce downstream tubing incrementally, measuring pressure after each addition.

• Inline filters and precolumn frits are frequent restriction points due to particulate loading.

Heavily loaded filters should be replaced rather than aggressively backflushed, which risks redistributing particles.

Step 5: Guard Column and Analytical Column

• Temporarily replace the column with a zero-dead-volume union or restrictor.

• If pressure normalizes, the restriction is located in the guard or analytical column.

Further diagnostics include comparing pressure behavior in aqueous versus organic-rich mobile phases, gradual flow increases from very low flow rates, and controlled reverse flushing with compatible solvents when permitted. Persistent pressure elevation after recovery attempts indicates irreversible fouling.

Step 6: Detector Flow Cell and Waste Line

• Measure pressure with the detector bypassed, then reintroduced.

• Restricted detector flow cells or kinked waste lines can contribute significant backpressure.

Flow cells may be cleaned or replaced according to manufacturer guidance.

Decision-Making Guide

• Pressure normalizes when the column is removed: restriction in the column or guard.

• Pressure remains high upstream of the column: restriction in the inline filter, autosampler, or mixer.

• Pump cannot generate stable pressure alone: inlet blockage, degassing issues, or check-valve or seal problems.

• Pressure spikes occur only during gradients: solvent or buffer incompatibility.

Common Root Causes and Corrective Actions

Particulate Contamination

• Filter samples and mobile phases.

• Maintain inline filtration and clean autosampler components regularly.

Buffer Precipitation

• Verify buffer solubility across the full solvent composition range.

• Adjust organic content, temperature, or buffer choice as needed.

Microbial Growth

• Periodically flush aqueous lines with organic solvent or approved biocides.

• Replace contaminated reservoirs and tubing.

Tubing Geometry Issues

• Excessive tubing length or inappropriate inner diameter can significantly increase pressure due to strong dependence of pressure drop on tubing radius.

High-Flow Operation Effects

• Ensure tubing dimensions, degassing capacity, and pump condition are suitable for elevated flow regimes.

Verification and Confirmation Tests

• Gravimetric flow checks confirm actual delivered flow.

• Solvent-switch tests differentiate viscosity-driven pressure effects from physical blockages.

• Gradient hold experiments help identify precipitation thresholds within the system.

Preventive Maintenance Best Practices

• Filter and degas all mobile phases.

• Replace inline filters and guard cartridges on a routine schedule.

• Clean autosampler needle seats and rotor seals periodically.

• Maintain a dedicated restrictor line for pump performance checks.

• Archive baseline pressure–flow profiles for future comparison.

Summary

Sequential isolation provides a logical and reproducible framework for diagnosing HPLC flow restrictions. By starting at the pump and progressing methodically through each component, analysts can distinguish mechanical faults, physical blockages, and solvent-related phenomena. High-flow methods require particular attention, as minor restrictions are magnified under these conditions.
